How Roasting Machine Control Panels Deliver Precision in Coffee Roasting
Nailing the perfect roast comes down to how well each stage of the process is controlled. The roasting machine control panel serves as the command center, where the roasting parameters are adjusted to shape how coffee flavor develops. In this article, we’ll take a closer look at several control panel features and how each one contributes to delivering precise and repeatable roast results.
Understanding the Control Panel of a Coffee Roaster
The control panel on a coffee roasting machine is the interface that connects the coffee roaster and the machine. It enables real-time adjustments and precise monitoring of key roasting variables such as temperature, airflow, and drum speed. Each of these factors contributes to how the coffee bean develops during the roast and influences its final flavor.
The control panels on modern coffee roasters integrate smart systems that support both manual control and automated sequences. These help improve consistency by enabling roasters to fine-tune settings and repeat roast profiles with minimal variation from batch to batch.
Berto roasters are designed with this level of control in mind. Each model’s control panel includes a range of features that support precision and repeatability throughout the roasting process.
The Features in the Roasting Machine’s Control Panel
Let’s dive into the features built into the roasting machine’s control panel. Each one is designed to give you precision and repeatability throughout your roasting process.
Touchscreen Interface for Intuitive Control
Touchscreen interfaces simplify how roasters interact with the machine by consolidating controls and automation tools into a single, easy-to-navigate panel. With this streamlined setup, operators can monitor the roast and make precise adjustments without switching between multiple controls or displays.

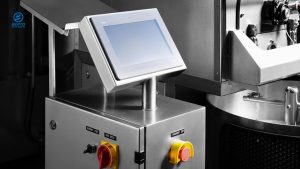

Among Berto’s lineup, Berto Type R Roaster features a touchscreen control panel designed to support both manual and automated roasting. Operators can manage key parameters such as temperature, airflow, drum speed, and timing directly from the control panel. The interface provides a smooth and intuitive experience, allowing roasters to start a roast from a selected coffee profile via the control panel.
Precision Temperature Control with PID
Precision temperature control is a critical factor in the roasting process, as a slight variation can significantly affect coffee flavor development. Stable and responsive temperature management lets the roast to progress smoothly through each stage, helping roasters achieve the best possible outcomes.
A PID controller (Proportional, Integral, Derivative) is a system that continuously compares the actual temperature inside the roaster to a target setpoint. It automatically adjusts heat input to correct any deviation, using a feedback loop that fine-tunes burner power in real time. This helps reduce temperature fluctuations, especially during transitions between key phases like Maillard development and first crack.
In Berto Type D Roaster, a digital PID controller is integrated into the control panel to manage both bean and exhaust temperatures. This dual-sensor setup provides a more complete view of the roasting environment and supports more stable heat application.
Automation Features for Roast Consistency
Consistency is key in coffee roasting, especially when multiple operators are involved or when production demands require repeatable results. Roasting machines that can record and replicate roast profiles help reduce manual adjustments and support consistent outcomes.
To enable profile recording, Berto roaster comes equipped with the Playback Assist™ feature, integrated into the control system of Berto Essential, Berto Essential Air, and Berto Type D Roaster. Once a roast profile is recorded, it can be recalled and repeated with minimal input. This is also used to maintain consistent parameters across batches and improve workflow efficiency.
On Berto Type D Roaster, this functionality is further enhanced with connectivity to platforms like Cropster and Artisan. Profiles can be imported and executed through the control panel, which combines external roast planning with internal machine automation.
Berto Type R Roaster also includes automation through the Recipe Mode in the control panel, so you can pre-program the roast for a fully automatic batch.
Precision Airflow Control
Precise airflow control affects heat transfer, bean agitation, and how evenly the beans develop inside the drum or chamber. When airflow is inconsistent, you risk uneven roasting or diminished flavour clarity. A well‑designed roasting machine lets the operator manage fan speed to adjust how air moves through the roast environment.

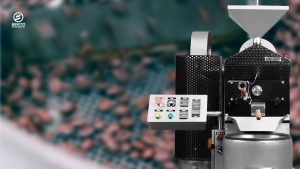

On Berto Essential Air, the control system supports both monitoring and adjustment of airflow. Operators can view and set airflow percentage and burner settings directly through the control panel, providing real-time feedback and improved control during roasting.
The airflow management in Berto Type D Roaster is further supported by the Air Pressure Assist™ system, which maintains internal drum pressure to stabilise airflow throughout the roast. Fan speed can be adjusted manually via the control panel, while the pressure-based system automatically compensates for external factors such as weather or exhaust duct conditions.
This combination of manual airflow control and automated pressure regulation helps improve roast precision, particularly in production environments where stable conditions are important for repeatable results.
Drum Speed Control
The speed of drum rotation affects how beans tumble and how evenly they absorb heat. Slower speeds increase contact with the drum surface, while faster speeds promote more lift and airflow around the beans. So adjusting drum rotation gives operators precise control to match bean movement to the characteristics of the coffee and the goals of the roast.
The control panel of both the Berto Essential Air and Berto Type D Roaster is equipped with a rotary knob for drum speed adjustment. In Berto Essential Air, which uses purely convective heat, controlling drum speed becomes key to achieving even bean exposure. This intuitive feature enables operators to adapt to different bean characteristics and roast goals, enhancing flavor development and ensuring consistent results across batches.
Operator Safety with Emergency Stop Button
Built-in safety features on the control panel give operators immediate control when unexpected issues arise. Quick access to emergency controls helps reduce the risk of hazards and supports a safer roasting environment without disrupting the overall workflow.
Each Berto roasting machine includes an emergency stop button on the control panel. This feature provides operators with immediate control to stop the machine if a fault or unsafe condition is detected during the roasting process.
Smarter Controls for Precise Roasts
Achieving precision in coffee roasting requires machines equipped with advanced control panel systems that manage every stage of the process with accuracy and ease.
Advanced features like intuitive touchscreen interfaces, responsive airflow control, PID temperature regulation, and adjustable drum speed are available across a range of Berto roasters—each designed to offer flexibility and consistency at every level of production. At the core of it all is BertoLogic™, our proprietary system that ensures unmatched precision and repeatability.
Elevate your roasting process with smarter controls and consistent flavor, batch after batch, with Berto roaster. Contact us today to find the right model for your needs!
